Internal Grinding Services- How and Why

1. Introduction

Definition and Process

Internal Diameter (ID) grinding is a precision machining process that removes material from the interior surface of a cylindrical workpiece. Using specialized grinding wheels, this technique achieves exact dimensions, tight tolerances, and superior surface finishes, making it essential for high-performance components. ID grinding can be done for components with a straight bore or with a tapered bore.

About Ripley Machine
Since the 1950s, Ripley Machine has been a leader in precision grinding, specializing in centerless and internal grinding services. Certified to ISO 9001:2015 standards, we deliver quality and reliability to industries nationwide. Explore our other grinding services to see how we can meet your needs.




2. Understanding ID Grinding

Applications
ID grinding serves critical industries like aerospace, automotive, medical and transportation, where precision is non-negotiable.

Advantages

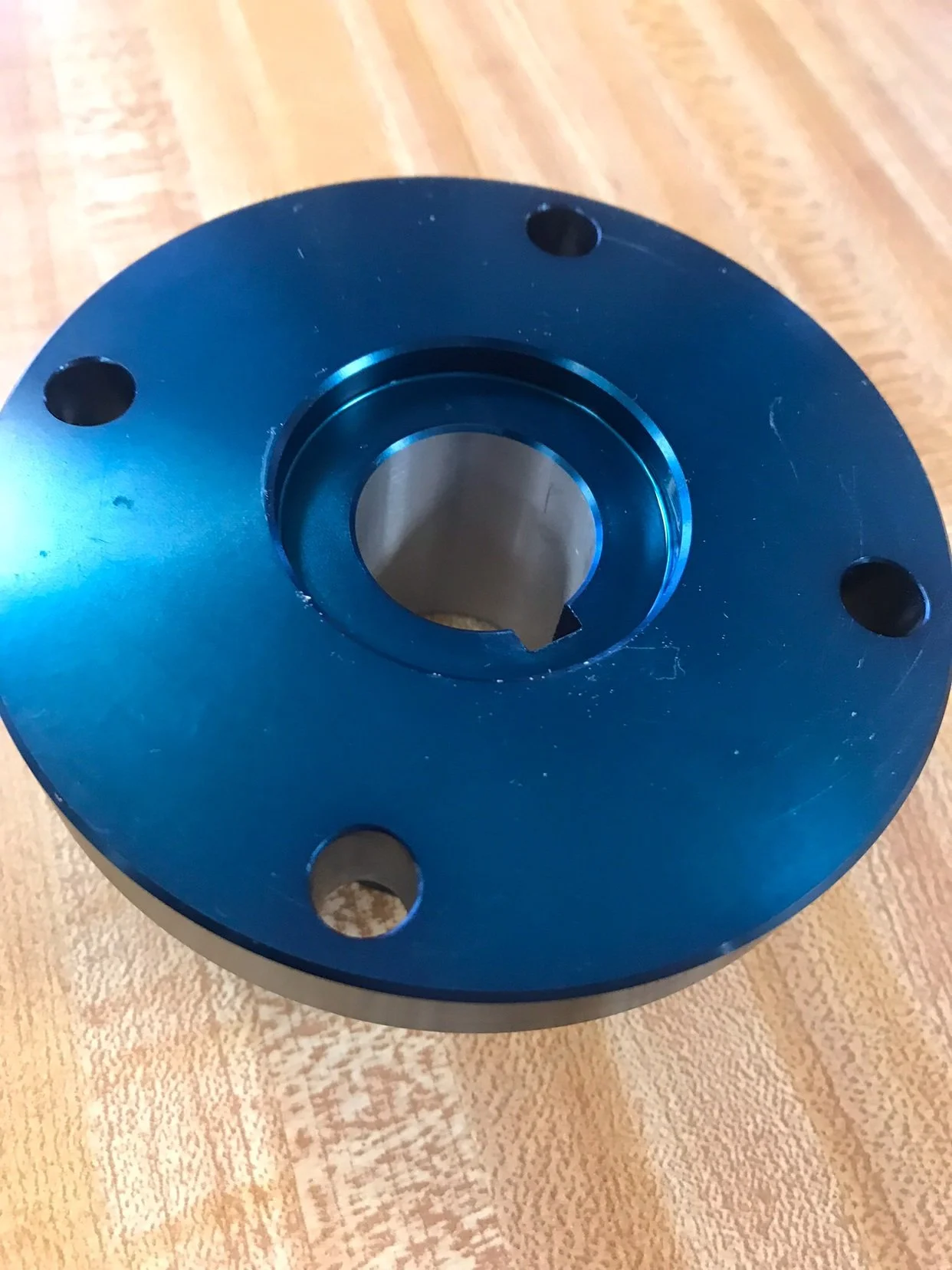

Our team ground the bore of this aluminum coupling component with blue anodize.

  • High Precision/Tight Tolerance: Utilizing ID Grinding helps to meet tight tolerances. Our grinding machines can typically hold tolerances as tight as .0005”.

  • Superior Surface Finish: Enhances component performance and longevity.

Disadvantages& Alternatives: While ID grinding excels in precision, it may be less cost-effective than alternatives such as hard turning.

3. Ripley Machine's ID Grinding Capabilities

Equipment and Technology
Ripley Machine leverages advanced CNC grinders as well as traditional Cincinatti Heald Internal Grinders to ensure efficiency and quality. Our ISO-certified processes guarantee consistent results. Our quality department is continuously investing in measurment equipment to help ensure that we meet and exceed the quality requirements of your project.

Material Expertise
We process a wide range of materials, including aluminum, stainless steel, brass, steel alloys, forgings, and castings, adapting to diverse customer requirements.

Precision and Tolerances
Our ID grinding achieves tolerances as tight as 0.0003” and surface finishes better than 8 Ra, reflecting our unwavering commitment to excellence.

4. Other Types of Grinding Services Offered

Thrufeed Centerless Grinding
Perfect for parts where the ground diameter is the largest, handling sizes from 0.063” to 2.5” with tolerances to 0.0003” and finishes better than 8 Ra.

Centerless Bar Stock Grinding
We grind bars up to 1” in diameter and 14’ in length, accommodating various materials with precision.

Infeed Centerless Grinding
Ideal for complex or out-of-round parts, grinding up to 4” in diameter and 6” in length with tolerances to 0.0003” and finishes better than 8 Ra.

Steel Bushings- Centerless Ground and Internal Ground Bore

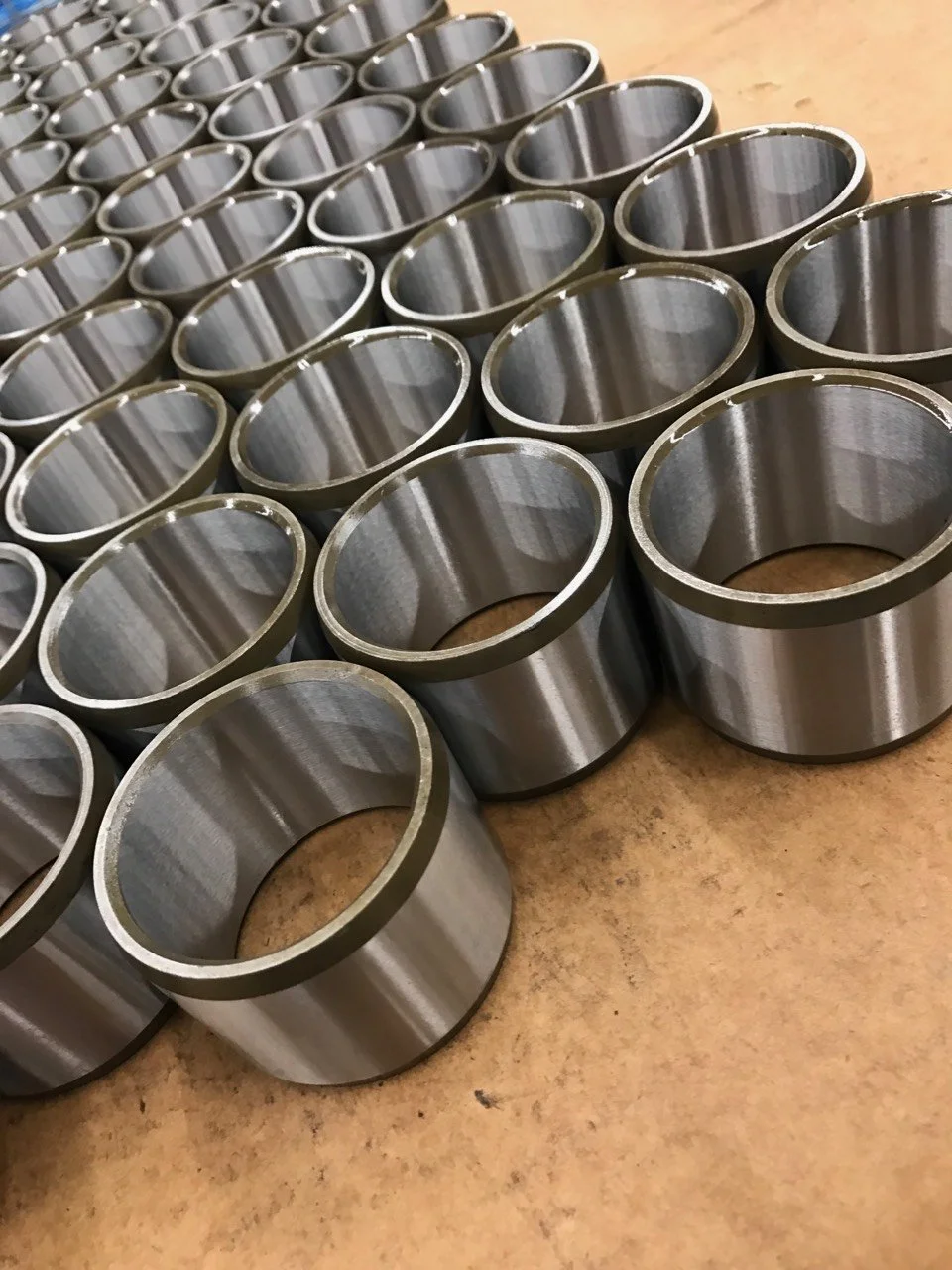

These steel bushings are a great example of our full capabilities at Ripley Machine. Our CNC Turning department machines these bushings before we centerless grind the OD and then grind the bore in our internal grinding department.

Center Grinding
For parts up to 20” long and 3” in diameter, we ensure concentricity between multiple diameters.

5. Customer Commitment and Service Excellence

Experienced Team
Our grinding department boasts operators with an average of 20 years of experience, bringing unmatched skill to every project.

Competitive Pricing and Lead Times
We deliver cost-effective solutions with lead times that often outpace the competition, keeping your project on track.

Nationwide Service
From coast to coast, Ripley Machine partners with clients to solve their toughest grinding challenges.

6. Case Studies and Success Stories

  • Transportation Quality- Our team worked closely with an OEM in the transportation sector do help develop a quality plan that revolved around Ripley Machine grinding the taper bore of a coupling component. Our expertise enabled them to redesign the coupling component to eliminate a quality issue with current design.

  • Local Machine Shop- We were recently approached by a local machine shop for precision internal diameter grinding. We worked with the shop on an expedited timeline to clarify some misunderstood specs to ensure parts met their finish requirements.

  • Rail Customer- A rain customer approached Ripley Machine with bushings they had manufactured. The bushings had gone undersize during heat treat operation. We were able to grind the I.D. of the parts into tolerance to help our customer avoid diaster.


7. Conclusion

ID grinding is a cornerstone of precision manufacturing, ensuring components meet the highest standards of performance and durability. Ripley Machine combines decades of expertise, advanced technology, and a customer-first mindset to deliver exceptional results. Ready to tackle your grinding needs? Contact us today!
